Glass Fiber Unwinding Machine And Slitting Machine Customized For Glass fiber pleated paper production

Brand Name : TONGCHEN

Model Number : TCFQ

Place of Origin : Bengbu, China

MOQ : 1 set

Price : US$2000~20000/set

Payment Terms : T/T

Supply Ability : 30 Set/Sets per Day

Delivery Time : 15~45 work days

Packaging Details : wooden box

Name : Glass Fiber Unwinding Machine

construction : Hepa Filter

Type : Filter Paper Folding Machine

Dimension : BengBu,China

Welder : Spot welding

Condition State : New

Weight : 2011kg

Contact Now

Glass fiber pleated paper production line unwinding machine and slitting machine
Customized products are available in various types. Each product has its own price. For detailed product information and to inquire about the price, please contact the customer service. The more quantity, the better price.
Products Description

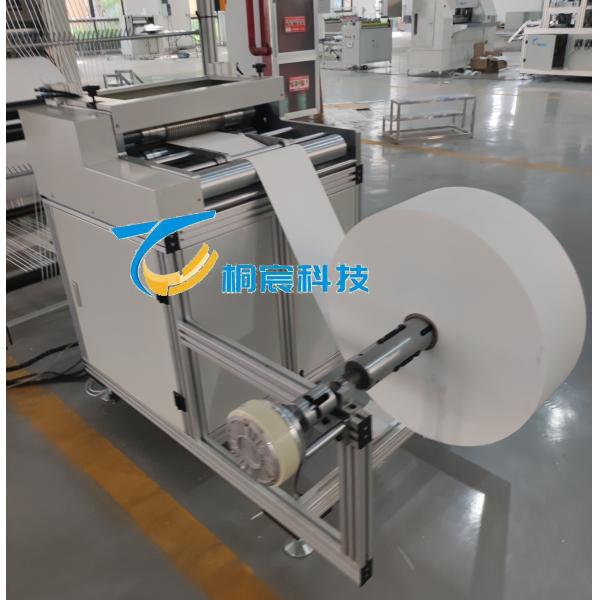

This equipment is the front-end core device of the filter glass fiber gluing pleated paper production line without partitions, integrating automatic feeding, tension control and high-precision slitting functions. Designed specifically for glass fiber filter paper and composite glass fiber materials, through a servo drive system and intelligent deviation correction technology, large rolls of glass fiber materials are slit into small rolls of specified widths, meeting the high-precision requirements of subsequent pleating and gluing processes.

Glass Fiber Unwinding Machine And Slitting Machine Customized For Glass fiber pleated paper production

Product application
Core functions:
Realize the automatic feeding, tension control and precise slitting of glass fiber materials, providing raw materials of standard width for subsequent pleats. ​
Applicable scenarios:
Production line of high-efficiency filters without separators (HEPA/ULPA)
Production of high-temperature resistant fiberglass filters (such as boiler dust removal filter elements)
Pretreatment stage of glass fiber composite filter element (activated carbon + glass fiber)
Target industry:
Air purification equipment manufacturing (medical cleanroom, semiconductor factory filters)
Production of industrial dust removal equipment (high-temperature filters for cement plants and steel mills)
The material pretreatment process of filter manufacturing (OEM/ODM) enterprises

Product Parameters
Product parameters for reference only, details consult customer service.
Machine Name Glass fiber pleated paper production line unwinding machine and slitting machine
Applicable materials Glass fiber filter paper, glass fiber composite paper, high-temperature resistant glass fiber cloth (moisture content ≤0.5%)
Slitting width range 50-850mm (Minimum slitting width 50mm, customizable widening up to 1500mm is supported)
Slitting accuracy ±0.15mm (static) /±0.3mm (dynamic, during high-speed operation)
Maximum load capacity of the discharge rack 500kg (standard single station) /1000kg (optional double station with automatic switching)
Slitting speed 0-180m/min (adjustable, depending on the material thickness. When the glass fiber is 0.5mm, it is recommended to be ≤150m/min)
